Performance Reference

Last updated: 09/10/2026

Below are reference benchmark results for VeRL-Omni training runs.

Diffusion actor output retention

The FSDP/FSDP2 PPO and NFT engines discard per-timestep model outputs after backward during ordinary training. Losses and metrics are still aggregated, but unused prediction/latent tensors are not retained and stacked across all timesteps and micro-batches. Forward-only calls keep their complete outputs, including reference-policy inference.

Direct engine callers that need outputs during training can opt in using the existing verl batch metadata: tu.assign_non_tensor(batch, return_model_output=True). The engine result retains the model_output key; it is an empty dictionary when outputs are discarded. The training worker continues to return metrics only.

This changes output lifetime, not the loss, gradient accumulation, input-trajectory placement, or DPO’s one-shot update. It does not make total device memory independent of trajectory length; capacity and throughput gains require workload-specific measurement.

Opt-in timestep input staging

For Qwen-Image FlowGRPO or DiffusionNFT training with FSDP/FSDP2 on GPU and ulysses_sequence_parallel_size=1, enable:

actor_rollout_ref.actor.enable_timestep_staging=true

This default-false option keeps the caller’s trajectory on CPU, copies shared prompt conditions once per micro-batch, and transfers only the current step’s inputs before forward/backward. PPO transfers the current/next latent pair and matching loss fields; NFT keeps the clean latent and any shared noise on device and transfers per-step noise when supplied. Dtypes, step order and gradient accumulation are unchanged. Unused driver tensors are not copied to the device. Consumed tensor inputs must be on CPU and must not require gradients.

The validated scope is QwenImagePipeline with flow_grpo or diffusion_nft on GPU, FSDP/FSDP2 and SP=1; see the Qwen-Image README. The shared engine does not enforce a model/device allowlist; trainer config validation rejects sequence parallelism. Inference keeps its existing input/output behavior. Training output opt-in still works, but retaining those outputs reintroduces trajectory-length dependent output memory.

Direct engine callers can set tu.assign_non_tensor(batch, enable_timestep_staging=True) on a training batch. The public actor worker supplies this metadata from its actor configuration; the reference engine uses the unchanged upstream FSDPEngineConfig.

Transfers are synchronous: there is no prefetch, pinned-memory pool, or overlap guarantee. Full CPU trajectory storage is unchanged. Measure both peak allocated/ reserved device memory and update time on the intended workload before choosing this memory-for-transfer-cost tradeoff; staging is not a throughput guarantee.

DAPO Phase 1: LoRA Training on Qwen3-Omni Thinker AVQA

This reference uses the Thinker DAPO Phase-1 recipe: vanilla token-level clipping with GRPO advantages, without dynamic sampling or overlong reward shaping. It is a single-seed run on AVQA, not the full DAPO recipe.

Experiment Settings

Setting	Value
Model	Qwen3-Omni-30B-A3B-Instruct, Thinker only
Hardware / actor	4 × NVIDIA A800, FSDP2 LoRA
Dataset / reward	AVQA; naive reward manager with choice_reward
LoRA rank / alpha	32 / 64
Learning rate / train batch size	3e-6 / 128 prompts
Rollout samples / tensor parallel size	n=16 / 2
Policy loss / clipping / aggregation	vanilla / 0.2–0.28 / token-mean
Advantage estimator / KL	GRPO / disabled
Data seed	42
Validation	All 1,911 AVQA examples, before training and every 10 steps
Validation decoding	Greedy: n=1, temperature=0, top_p=1.0, top_k=-1

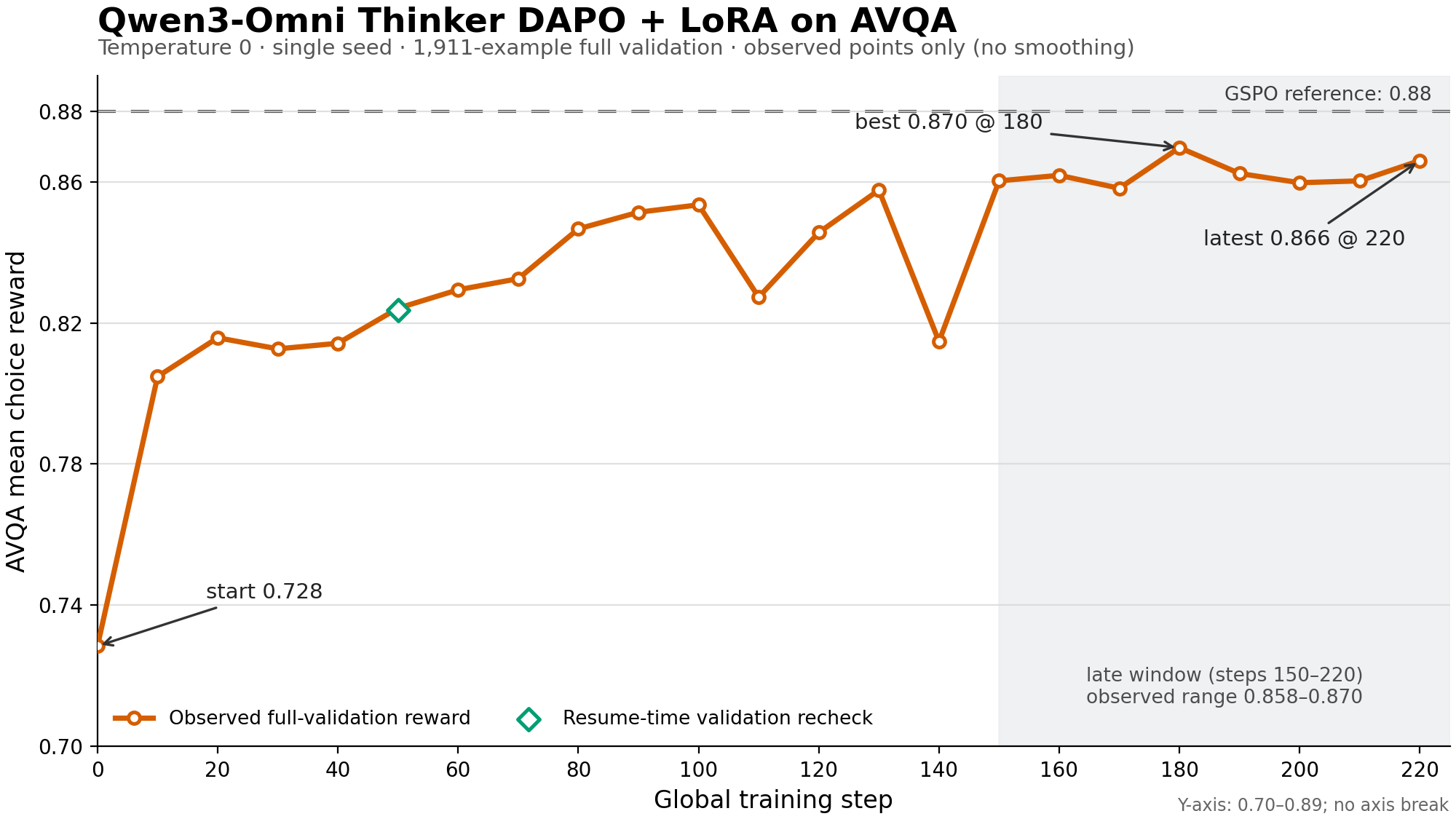

Long-Run Validation Reward

The run was resumed from step 50 and continued through step 235 without changing or tuning the training configuration. The recorded full-validation curve extends through step 220; each point is the mean choice reward over the same validation set.

Checkpoint	Step	Validation reward
Initial	0	0.728414
Initial run end	50	0.824176
Best observed	180	0.869702
Latest recorded validation	220	0.866039

Validation reward improved by 14.1287 percentage points from the initial to the best checkpoint. At steps 150–220, it fluctuated between 0.858189 and 0.869702. The curve shows observed values without smoothing or interpolation; it does not reach the GSPO+LoRA reference value of 0.88 in this window.

The GSPO reference uses a different validation sampling configuration (temperature=1.0, top_p=0.7, top_k=-1). Re-evaluating the retained step-50/150/200 checkpoints with that tuple gave 0.821559 / 0.856096 / 0.859759, versus 0.824176 / 0.860283 / 0.859759 with greedy decoding. These single-seed, single-decode observations do not establish GSPO performance parity or a systematic advantage for either validation temperature.

The experiment used implementation commit c4671984. See the long-run evidence and configuration comparison for the run record; later documentation updates do not change its tested revision.

FlowGRPO: LoRA Training on Qwen-Image OCR

All experiments used NVIDIA H800 GPUs, LoRA rank 64, ppo_micro_batch_size_per_gpu 16, and the full 1k validation set. Training images per step = batch size × images per prompt = 32 × 16 = 512.

Experiment Settings and Throughput

Script	# GPUs	# GPUs for Actor	# GPUs for Rollout	# GPUs for Async Reward	Batch Size	Images per Prompt	LR	Throughput (images/GPU/s)	Time per Step (s)
run_qwen_image_ocr_lora.sh	4	4	4	0 (sync)	32	16	3e-4	0.305	420
run_qwen_image_ocr_lora_async_reward.sh	5	4	4	1	32	16	3e-4	0.280	360

Training - Zero Standard Deviation Ratio and Reward Curve

• qwen_image_ocr_lora: sync reward, 4 GPUs (run_qwen_image_ocr_lora.sh)

• qwen_image_ocr_lora_async_reward: async reward on a dedicated 5th GPU (run_qwen_image_ocr_lora_async_reward.sh)

Validation Reward Curve

Evaluated with trainer.val_before_train=True:

• qwen_image_ocr_lora: sync reward, 4 GPUs (run_qwen_image_ocr_lora.sh)

• qwen_image_ocr_lora_async_reward: async reward on a dedicated 5th GPU (run_qwen_image_ocr_lora_async_reward.sh)

Note: Reward curves may differ from the references above mainly due to rollout-side stochasticity: diffusion rollouts sample random latents/noise, and the example scripts do not fix the data seed, so prompt ordering can vary between runs.

FlowGRPO: non-CFG Full Model Training on Qwen-Image OCR

Experiments used NVIDIA H200 GPUs, lr 3e-5, clip_ratio 1e-5, optimizer state fp32. The other parameters are consistent with the LoRA setting.

Note that the initial reward is expected to be low for non-CFG full model training.

Full-Model Experiment Settings and Throughput

Script	# GPUs	# GPUs for Actor	# GPUs for Rollout	# GPUs for Async Reward	Batch Size	Images per Prompt	LR	Throughput (images/GPU/s)	Time per Step (s)
run_qwen_image_ocr.sh	4	4	4	0 (sync)	32	16	3e-5	0.510	250

Reference wandb curve here.

Full-Model Training - Zero Standard Deviation Ratio and Reward Curve

Training - Clip Fraction

Full-Model Validation Reward Curve

FlowGRPO non-CFG Full Model: VeOmni vs FSDP1 Backend (same config)

Apples-to-apples comparison: the VeOmni and FSDP1 actor engines run the same FlowGRPO recipe — same algorithm, data, and hyper-parameters — on the same hardware (64 × NVIDIA H100), differing only in the training engine. lr 3e-5, clip_ratio 1e-5, optimizer state fp32; other parameters match the LoRA setting.

• FSDP1 — run_qwen_image_ocr.sh

• VeOmni — run_qwen_image_ocr_veomni.sh (see the optional engine backends)

Settings and Throughput

Backend	Script	GPU name	# GPUs	# GPUs for Actor	# GPUs for Rollout	# GPUs for Async Reward	Batch Size	Images per Prompt	LR	Throughput (images/GPU/s)	Time per Step (s)
VeOmni	run_qwen_image_ocr_veomni.sh	H100	64	64	64	0 (sync)	32	16	3e-5	0.079	100
FSDP1	run_qwen_image_ocr.sh	H100	64	64	64	0 (sync)	32	16	3e-5	0.077	105

Note: VeOmni and FSDP1 run with actor_rollout_ref.actor.veomni_config.param_offload=False, actor_rollout_ref.actor.veomni_config.optimizer_offload=True, and SP=1.

Full-Model Training - Zero Standard Deviation Ratio and Reward Curve

Training - Clip Fraction

Full-Model Validation Reward Curve

FlowDPPO: LoRA Training on Qwen-Image OCR

All experiments used NVIDIA H200 GPUs, LoRA rank 64, ppo_micro_batch_size_per_gpu 16, and the full 1k validation set. Training images per step = batch size × images per prompt = 32 × 16 = 512.

Script	# GPUs	# GPUs for Actor	# GPUs for Rollout	# GPUs for Async Reward	Batch Size	Images per Prompt	LR	Throughput (images/GPU/s)	Time per Step (s)
run_qwen_image_ocr_lora.sh	4	4	4	0 (sync)	32	16	3e-4	0.240	540

LoRA Validation Reward Curve

DiffusionNFT: non-CFG LoRA Training on Qwen-Image OCR

All experiments used NVIDIA H200 GPUs, LoRA rank 64, ppo_micro_batch_size_per_gpu 16, and the full 1k validation set. Training images per step = batch size × images per prompt = 32 × 16 = 512.

Script	# GPUs	# GPUs for Actor	# GPUs for Rollout	# GPUs for Async Reward	Batch Size	Images per Prompt	LR	Throughput (images/GPU/s)	Time per Step (s)
run_qwen_image_ocr_lora.sh	4	4	4	0 (sync)	24	12	3e-4	0.175	550

Reference wandb curve here.

LoRA Validation Reward Curve

GSPO OPD: Qwen3-Omni-30B-A3B training on 32xNPU (2 x Atlas 800T A3)

Experiments used Atlas 800T A3 NPUs, LoRA rank 32 applied to attention linear modules, train_batch_size=128 and rollout n=16 per prompt, and the full 2k validation set.

We add Gaussian noise (σ = 0.25·∥W∥) to the weights of Qwen3-Omni-30B-A3B-Instruct as the student model, while keeping the original un-noised model as the teacher. Both models are served by vllm_omni in AR mode. We compare the proposed OPD (Offline Preference Distillation) against a standard GSPO baseline, which trains the same noised Qwen3-Omni model directly under identical settings.

Script	# NPUs	# NPUs for Actor	# NPUs for Rollout	# NPUs for Teacher Model	# NPUs for Async Reward	Batch Size	Rollouts per Prompt	LR	Time per Step (s)
run_qwen3_omni_thinker_gspo_lora_mmk12_v1_opd_npu.sh	32	16	16	16	0 (sync)	128	16	3e-6	1800

Training Reward Curve (OPD vs GSPO)

Validation Reward Curve (OPD vs GSPO)
